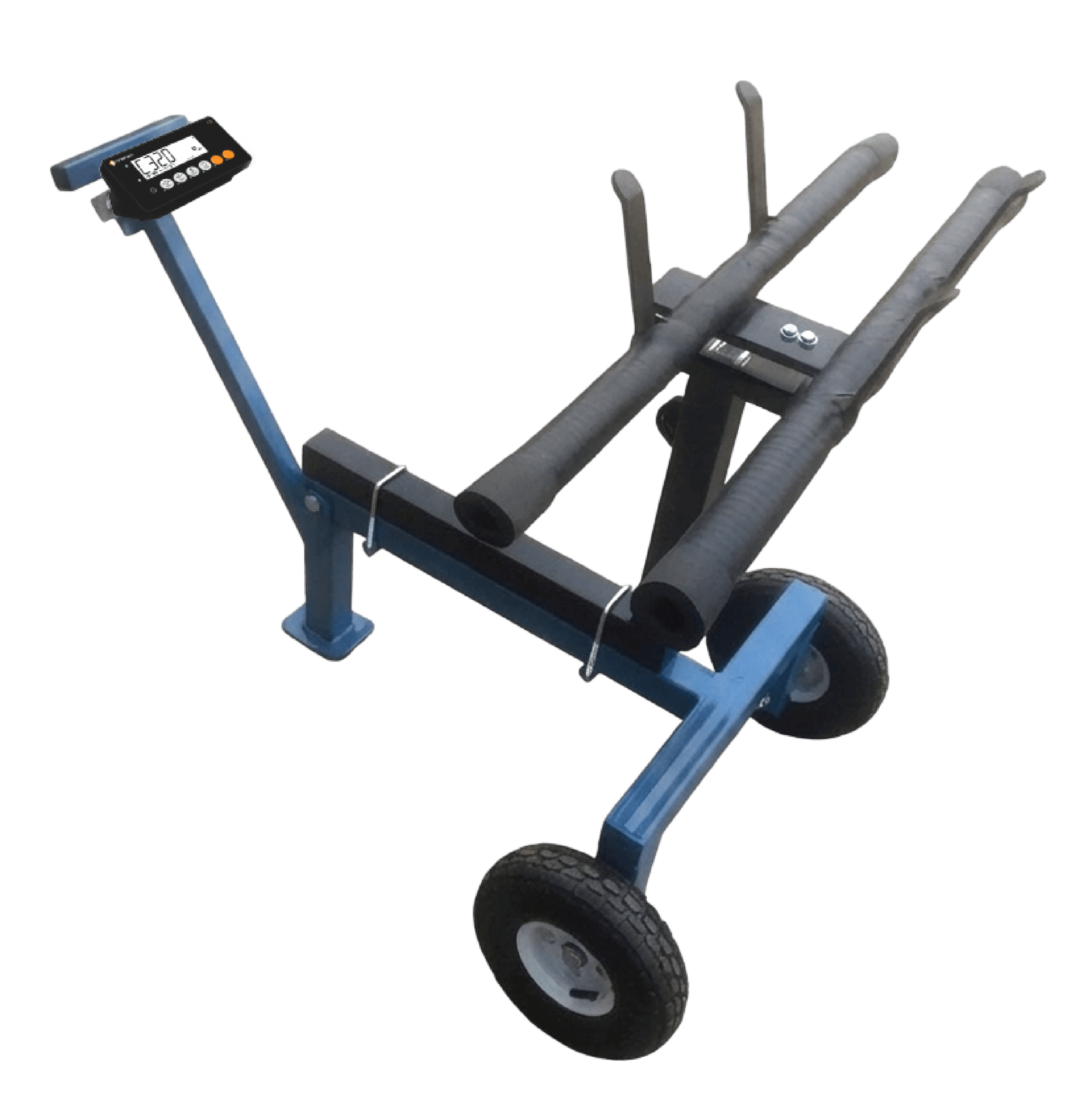

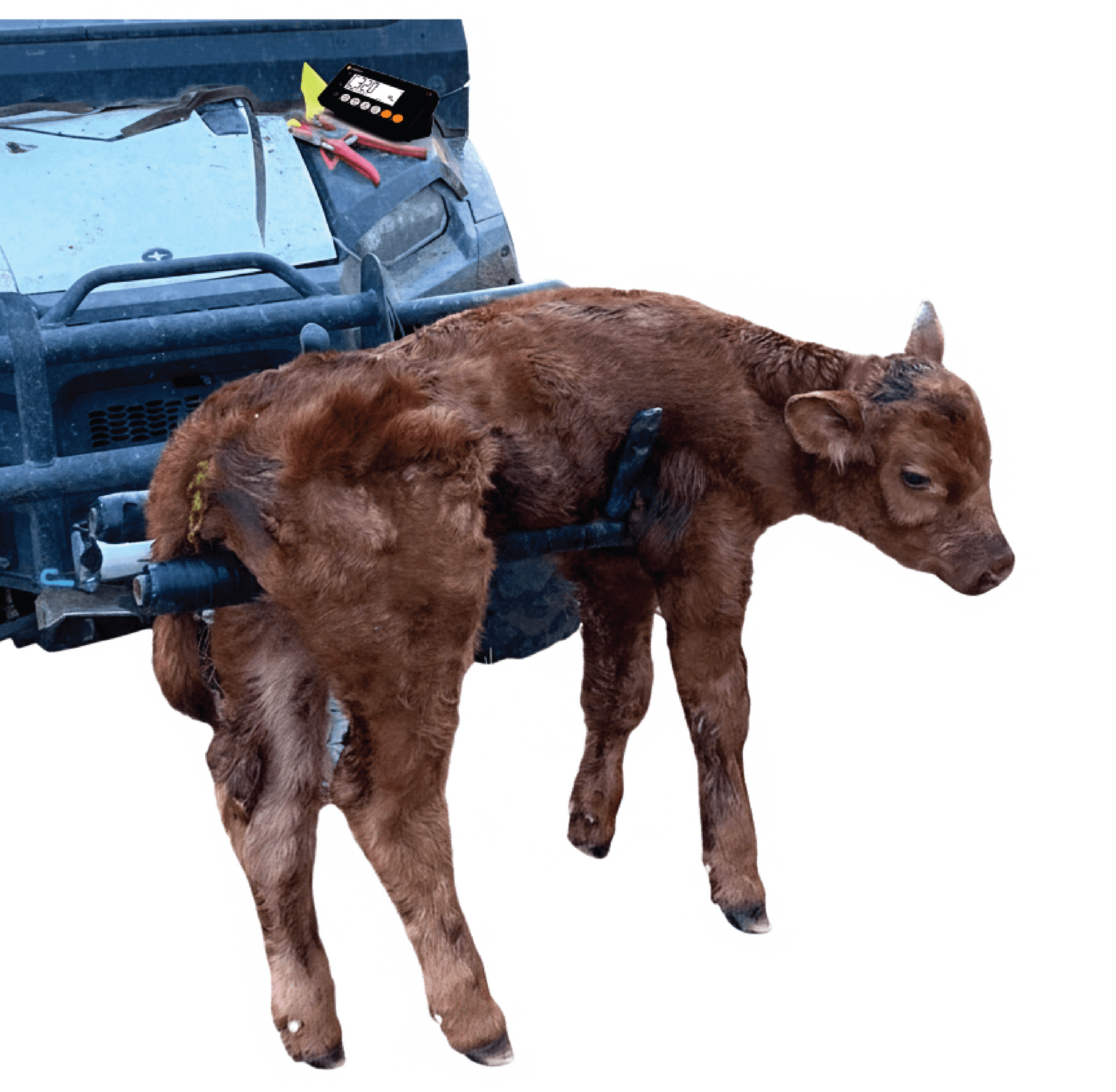

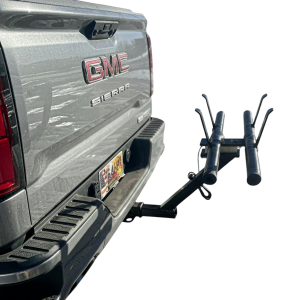

Calf Scale

• Capacity: 300lbs

This scale is built rugged to work with you wherever you go. Scale mounts to pickup, ATV or any vehicle with a receiver hitch. The calf scale is great for today’s progressive cow/ calf operations where birth weights are recorded for EPD’s and other record keeping. It can also serve as a means of transport for the calf. Other benefits include having calf at working height. When the calf is upright and not on the ground a much safer relationship is achieved with the mother cow. If you already own one of LBS’ Electronic Scales, or are purchasing one, the same readout indicator can be used on both scales.

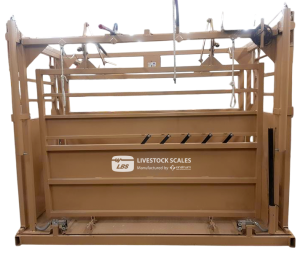

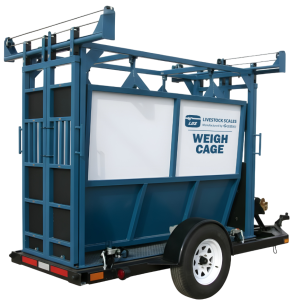

Single Animal Weigh Cage

This 9 ft. weigh cage is heavily constructed & comes fitted with all the electronics necessary for livestock weighing. This self-contained unit also features adjustable sides to stop smaller livestock from turning within the cage, steel kick-panels on the lower half, ¼” plastic sheeting on the upper half to enable ear tags to be read via antennas and easy-open bi-sliding doors at either end. The unique design of the easy-slide doors allows the handler to open the head or rear gate when standing on either side of the cage – and with one hand. This system is certified Legal for Trade.

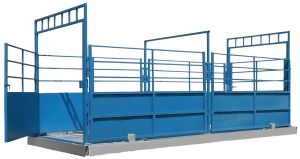

Platform Scale

The all-electronic multi-animal scale features a self-contained platform for complete portability. Four (4) 10,000lb. load cells provide a 150% overload safety factor. Optional 6 ft. stock racks (with spring-loaded latches front & back) and a card printer (with time & date) are available.

• Total Capacity: 20,000 lbs
• Warranty: 3 years, parts & labor
• Accuracy: 1/10th of 1%
• Certified Legal for Trade in ALL STATES
• NTEP Approved CoC# 02-053

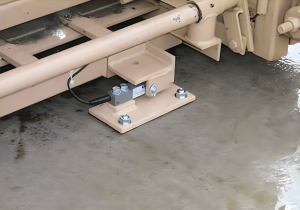

Side Chute Mounts

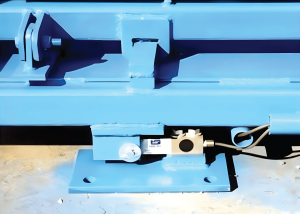

Under the Chute Mounts

Squeeze Chute Mounts

Each load cell is housed in a set of our specially designed mounts, constructed of heavy gauge steel (the most durable on the market today). Or a set can be specially designed to fit a customized mounting application.

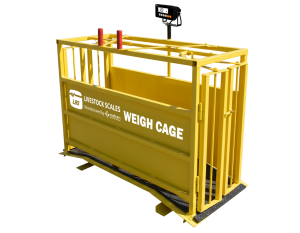

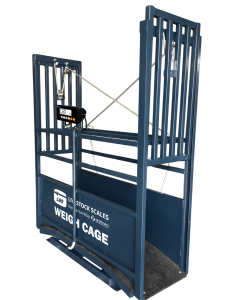

Small Animal Weigh Cage

This self-contained weigh cage, measuring 55″ x 24″ deck, inside is 50″ x 18″ in size (can be modified), and is constructed of heavy gauge steel & comes fitted with a rubber mat, all the necessary electronics for effortless livestock weighing. 500 x 1 lb, 1% Accuracy

Features

• Easy-open sliding doors at either end allow the handler to open the head or rear gate when standing back with one hand by a single rope, or easy Butterfly doors or single slam doors.
• 14 gauge sheeting on both sides allows quieter operation & make a blind view for the livestock looking out.
• 1–2,000 lbs load cell under the deck, gives 700 lbs at the tip of the deck.
• Simple cage with single doors at both ends
• Floor overlaps frame allowing manure to run off the sides – prevents buildup underneath.
• Deck is sloped on the ends for easy step-up for livestock.

Options Readout 1/10 % Accuracy 12 Volt DC, 110 AC or Battery Powered LED or LCD Display RS232 Compatible

Options Available Deck with No Cage Printer EID Tag Reader Computer Interface Will customize if necessary

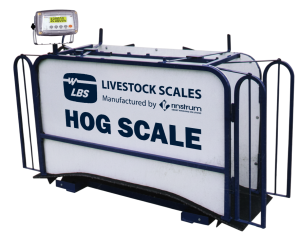

Hog Scale

This portable scale is designed for fast handling of small animals such as sorting pigs for marketing weights. Each end has quick open gates. The simplified design of this economical scale gives top performance. No cable, mechanical bearings or pivot points to jam or bind. The electronic indicator has continuous weight averaging which gives steady reading while the animal is still active on the scale. The display can be 110 volts or battery powered and is accurate within 99.9% or 1/10th of 1%.

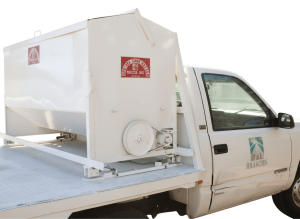

Cake Feeder Scale

Allows the livestock feeder to maintain accurate records on pasture fed cattle by netting off individual amounts/ loads of feed, medicated cake and minerals dispensed. It will also be possible to track exact amounts removed from storage bins, loaded into the feeder and the pounds that are fed per head.

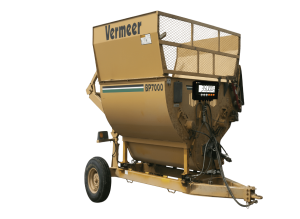

Hay Processor Scale

Allows the livestock feeder to maintain accurate records on pasture fed or bunk fed cattle, by netting off individual amounts of hay dispensed. It will also be possible to track the exact amounts removed from hay storage, loaded into the processor and exact pounds fed per head.

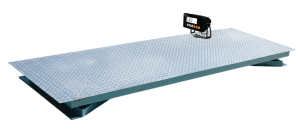

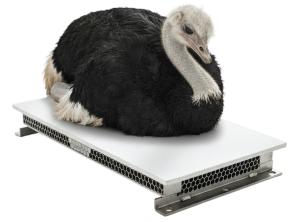

Walkway Scale/ Big Bird Platform Weighing System

This special platform scale 32” x 48” is designed for weighing ostriches and other ratites. Hooded birds can be easily held on scale for weighing. 110 volt or battery powered indicator which is accurate with 99.9% or 1/10th of 1%. When you need accurate weights of big birds for decisions about feed conversions, growth rates, medication dosage or marketing information, LBS has what you need. Optional big bird box can be added. The enclosure is 34” wide, 5’ long and 8’ high, and will open on both ends for front or back entry or exit.

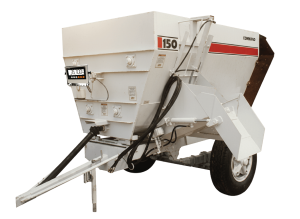

Mixer Box

Loadcells and indicators can be installed on all shapes and sizes of feeder mixer boxes.

Electronics

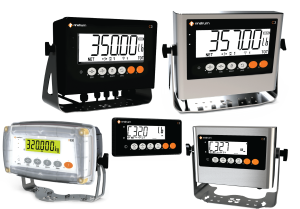

Rinstrum Indicators are very flexible, precision instruments which include a specially written program for livestock weighing applications. All functions, including calibration capacity, gross/ net, tare and graduation size are selected from the front panel. These durable indicators provide problem-free, no-nonsense weighing in less than ideal environments.

• Operating Power: 110V, 12VDC or rechargeable batteries (500 hrs w/ auto shutdown)
• Easy to read LCD display: 1”..5 ½ digits
• Continuous Weight Averaging: 1 to 6 seconds (adjustable)
• Interface Port: RS232, easily connects to computers/ printers etc.
